Part numbers in specification sheet. See below.
An all-position self-shielded flux cored welding wire designed for thin mild and galvanised steel. The unique quality of this product is that you do not have to use a shielding gas. POWERCRAFT® T-11 produces a smooth arc with low spatter, easy slag removal, good bead appearance and multi-pass welding.
The POWERCRAFT® T-11 produces a smooth arc with low spatter, easy slag removal, good bead appearance and multi-pass welding. It is an all-position self-shielded flux cored welding wire designed for thin mild and galvanised steel. The unique quality of this product is that you do not have to use a shielding gas.

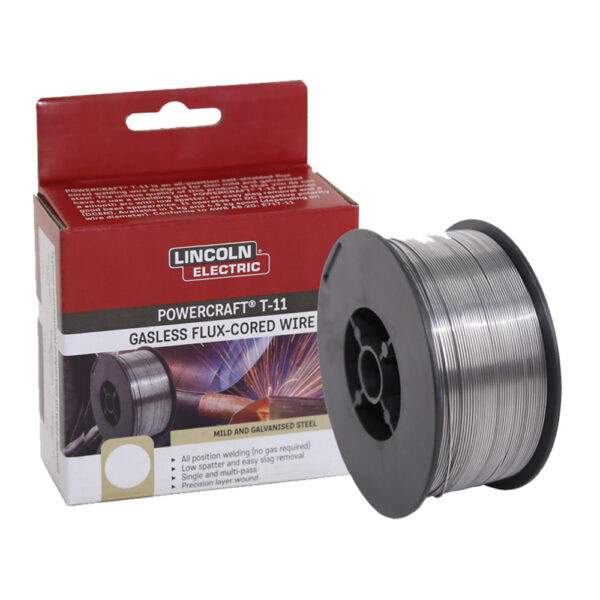

Powecraft T-11 Gasless flux-cored wire for mild and galvanised steel
An all-position self-shielded flux cored welding wire designed for thin mild and galvanised steel. The unique quality of this product is that you do not have to use a shielding gas. POWERCRAFT® T-11 produces a smooth arc with low spatter, easy slag removal, good bead appearance and multi-pass welding.
| 15kg spool | |||||
| Typical mechanical properties of weld deposit | |||||
| Yield strength (Mpa) | Tensile Strength (Mpa) | Elongation A4 (%) | |||
| ≥390 | 490-670 | ≥20 | |||
| Typical chemical analysis of weld deposit (%) | |||||
| C | Mn | Si | S | P | Al |
| 0.30 max | 1.75 max | 0.60 max | 0.03 max | 0.03 max | 1.80 max |
| Recommended Welding parameters (DC-) | |||||
| Part number | Wire diameter (mm) | Current (A) | Voltage (V) | Stick out (mm) | |
| 14-111215 | 1.2 | 120-240 | 16-21 | 10-18 | |
| 4.5kg spool | |||||
| Typical mechanical properties of weld deposit | |||||
| Yield strength (Mpa) | Tensile Strength (Mpa) | Elongation A4 (%) | |||
| ≥390 | 490-670 | ≥20 | |||
| Typical checmical analysis of weld deposit (%) | |||||
| C | Mn | Si | S | P | Al |
| 0.30 max | 1.75 max | 0.60 max | 0.03 max | 0.03 max | 1.80 max |
| Recommended Welding parameters (DC-) | |||||
| Part number | Wire diameter (mm) | Current (A) | Voltage (V) | Stick out (mm) | |
| 14-110845 | 0.8 | 80-160 | 15-20 | 8-12 | |
| 14-110945 | 0.9 | 100-160 | 15-20 | 8-12 | |
| 14-111245 | 1.2 | 120-240 | 16-21 | 10-18 | |
| 1kg spool | |||||
| Typical mechanical properties of weld deposit | |||||
| Yield strength (Mpa) | Tensile Strength (Mpa) | Elongation A4 (%) | |||
| ≥390 | 490-670 | ≥20 | |||
| Recommended Welding parameters (DC-) | |||||
| Part number | Wire diameter (mm) | Current (A) | Voltage (V) | Stick out (mm) | |
| 14-110810 | 0.8 | 80-160 | 15-20 | 8-12 | |
| 14-110910 | 0.9 | 100-160 | 15-20 | 8-12 | |
The POWERCRAFT® T-11 produces a smooth arc with low spatter, easy slag removal, good bead appearance and multi-pass welding. It is an all-position self-shielded flux cored welding wire designed for thin mild and galvanised steel. The unique quality of this product is that you do not have to use a shielding gas.
* Please be advised that unconventional package sizes may incur additional shipping costs
